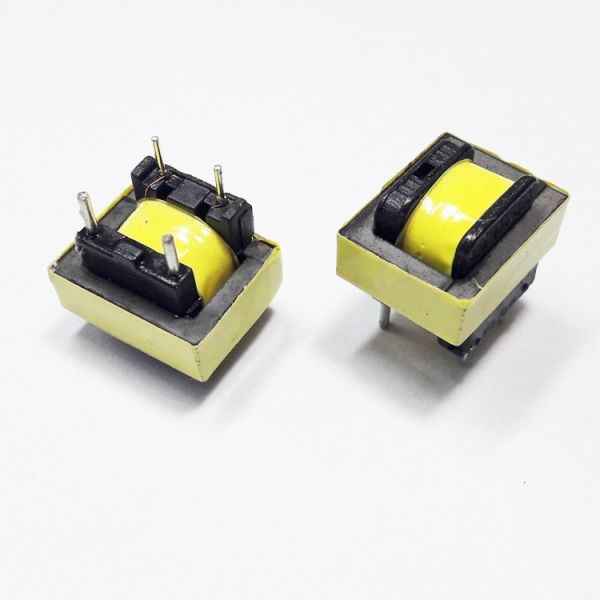

Low Frequency Voltage Horizontal Driver Transformer EI19 1000:1 2000:1

1.Product Description

1. Good low-frequency characteristics: optimized design for low-frequency signals, in the low-frequency band (e.g., 20Hz-20kHz audio range) can maintain good signal transmission and processing capabilities, the frequency response is relatively flat, which ensures the accurate transmission and reduction of low-frequency signals.

2. High permeability core: EI19 Low Frequency Driver Transformer generally adopts high permeability silicon steel sheet as the core material, which can effectively concentrate and guide the magnetic field, improve the transformer's electromagnetic conversion efficiency, reduce the hysteresis loss and eddy current loss, and make the transformer more stable and efficient in operation.

3. Multi-winding structure: usually has more than one winding, can realize a variety of functions, such as voltage conversion, current conversion, impedance matching and so on. Through the turns ratio and connection of different windings, it can meet the needs of different circuits for signal processing.

4. Good insulation performance: with reliable insulation structure, can withstand a certain voltage level, to ensure electrical isolation between the windings and between the windings and the core, to prevent leakage and short-circuit and other faults, improve the safety and stability of the transformer.

2.Working Principle

-Fundamentals of Electromagnetic Induction
When an alternating current passes through the primary windings of a transformer, it generates an alternating magnetic field around the windings. According to Ampere's law, the current produces a magnetic field, and since the current is alternating, the magnetic field also varies periodically from time to time.

--Role of the iron core
The EI19 Low Frequency Driver Transformer utilizes an EI-type core, which consists of E-type and I-type silicon steel sheets laminated together. Silicon steel sheet has high permeability, can concentrate and guide the magnetic field, so that the magnetic field almost all through the core to form a closed magnetic circuit. This not only enhances the strength of the magnetic field, but also dramatically reduces magnetic leakage and improves the efficiency of electromagnetic conversion. The alternating magnetic field is conducted in the core and passes through the secondary winding.

--Secondary winding induced voltage
According to Faraday's law of electromagnetic induction, the alternating magnetic field passing through the secondary winding generates an induced electromotive force in the secondary winding. The magnitude of the EMF is proportional to the rate of change of magnetic flux through the winding. Since the magnetic field is alternating, the flux is constantly changing, resulting in a constant induced voltage in the secondary winding.

Horizontal Driver Transformer EI19 1000:1 2000:1

horizontal output transformer 1000:1

EI19 horizontal 1000:1 2000:1
